high-end 135 inch cinema tab tensioned motorized screen

Availability:
Quantity:

Cinema Motorized Screens are perfect for home theater or high level entertainment and business centers. The screen is widely used in home cinema, hotels, business centers, meeting rooms, entertainment centers etc

Features of Cinema Motorized Screen

* High quality aluminum housing, unique design for your modern household

* Use HD 4K Matte White fabric to ensure the screen to be best flat surface

* Silent heavy-duty Tubular motor to ensure the screen stable and long using life, low noise keeps silent in the room. Economic low noise synchronous motor is optional.

* Ease of installation, tracking wall mounted or ceiling hanged installation way

* Standard with In-line Switch, with a combination of up, down and stop press can conduct all movement of the screen, Remote Controller is optional.

铝合金电动幕3

Screen Material

  • Active 3D, 4K Ultra HD, and HDR Ready

  • Not compatible with Ultra Short-throw Projectors

  • Standard black masking borders

  • Also available in sound transparent material

  • Available in the following diagonal sizes:

    • 84", 100", 120" and 180" in 4:3 format

    • 84", 100", 110", 125", 150"       and 180" in 16:9 format

    • 85", 90", 106", 128" and 142" in 16:10       format

    • Customize is available

Format Diagonal Model No. View   Area Housing size Packing size
Inch
Wmm Hmm Lmm W*Hmm Lmm W*Hmm
1:1 60 ZCE60S 1520 1520 1730 100*130 1870 190*160
70 ZCE70S 1780 1780 1990 100*130 2130 190*160
84 ZCE84S 2130 2130 2340 100*130 2480 190*160
96 ZCE96S 2440 2440 2650 100*130 2790 190*160
4:3 84 ZCE84V 1710 1280 1920 100*130 2060 190*160
100 ZCE100V 2030 1520 2240 100*130 2380 190*160
120 ZCE120V 2440 1830 2650 100*130 2790 190*160
16:9 84 ZCE84H 1860 1050 2070 100*130 2210 190*160
92 ZCE92H 2040 1150 2250 100*130 2390 190*160
100 ZCE100H 2210 1240 2420 100*130 2560 190*160
106 ZCE106H 2350 1320 2560 100*130 2700 190*160
120 ZCE120H 2660 1500 2870 100*130 3010 190*160
133 ZCE133H 2950 1660 3160 100*130 3300 190*160
135 ZCE135H 2990 1680 3200 100*130 3340 190*160
16:10 100 ZCE100W 2150 1340 2360 100*130 2500 190*160
120 ZCE120W 2580 1610 2790 100*130 2930 190*160


Design and Installation

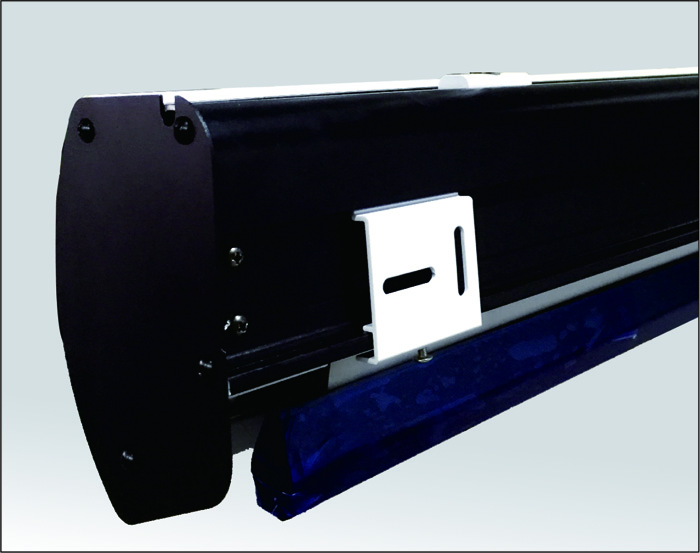

  • Luxury aluminum casing for wall/ceiling installations

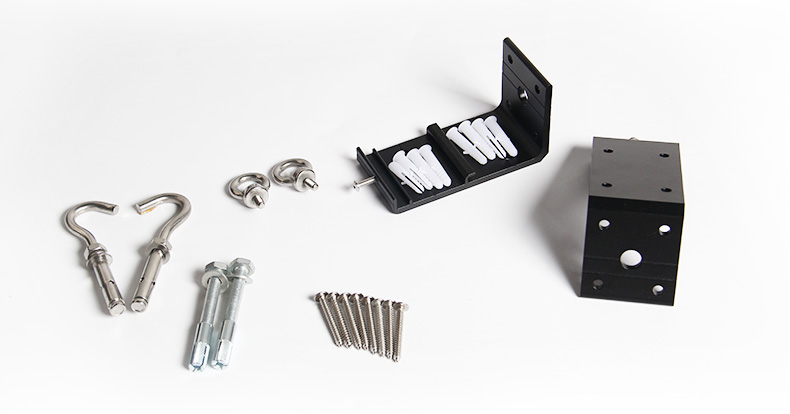

  • Includes wall mounts

  • Remote controller included

  • Ships fully assembled with RF remote connection ready to plug &      play

配件图3铝合金电动幕4
