180° Curved Projection Screen for Flight Simulator System

From 180° to 360° - Curved screens can be made to suit whatever radius and size you require. Curved screens are excellent for using with immersive game play, simulators and displays. They give you more realism when the image goes around you. Our screens are built using high strength aluminum extrusion with a screen material to suit your application.
Availability:
Quantity:
  • 180CS
  • SMAX
  • 90106000

We make curved screens, screens for active and passive 3D simulator screens and simulation displays. Curved Frame Screen is a customized product that is made-to-order for each customer. For the curved screen, a unique material is applied to the frame that is specially manufactured to ensure that the screen has no creases and high smoothness. Any degree and shape of the screens are available for single or multi-projector displays. All curved screens are available in a design format, custom sizes, FOV, and Radii

20_20211117_THE_HIVE_Digital_Projection_mzj3ez

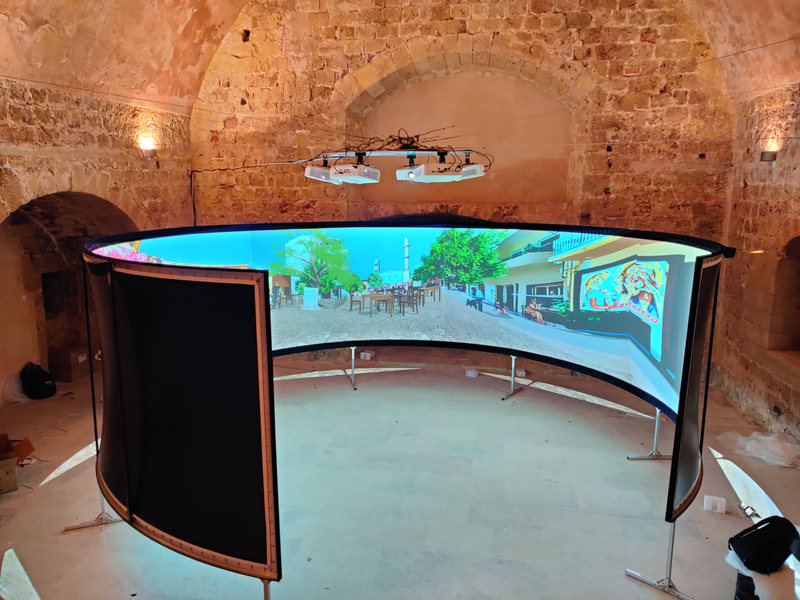

Curved Front Projection
We create curved displays from rigid substrates or from flexible screen material stretched over specially designed frames. Projector mounts can be constructed around virtually any cockpit or cab and set up with projectors edge-blended to give a near perfect seamless display around a complete 180° field of view.


Segmented Front Projection
Using rigid or flexible screens we can create multiple channel systems to give the possibility of displays with up to 360° field of view. In these applications, the projectors use hard edge blending, but the images can be exactly positioned to leave only a hairline join.



PRODUCT FEATURES

» Gives a sense of immersion

» For Cinema

» For Visualization Applications

» For Multi-channel Simulation Displays

» Excellent for museum or exhibitions

» Excellent for training simulators : flight simulators, driving simulators, military simulators…



APPLICATIONS

» Cinema

» Museums, Theme Parks, Galleries

» Gaming, Entertainment

» Control Room

» Training Simulators (Flight Simulators, Driving Simulators, Military Simulators…)

» Government Projects

» Education

ring screen 2





DescriptionHD Flexible WhiteHD Flexible Gray3D   Silver(Flexible)3D Silver(Hard)Rear   Gray(Flexible )
Brightness(Gain)10.92.5-2.80.8-4.03
View Angle16016512070-110120
DimensionHeightUp   to 4.5m HUp   to 3.2m HUp   to 3.6m HUp   to 2.5m HUp   to 4.8m H
WidthNo Limit(Depending on # of   projectors)
Material(Color)WhiteGraySilverSilverDark Gray
SeamlessYesYesYesYesYes
Frame Width8CM,10CM,15CM
3D CapabilityNoNoYesYesNo
ApplicationsCinema,   Video PresentationCinemaCinema,   SimulationCinema,   SimulationRear   Projection
RemarksFloor Stand is optional

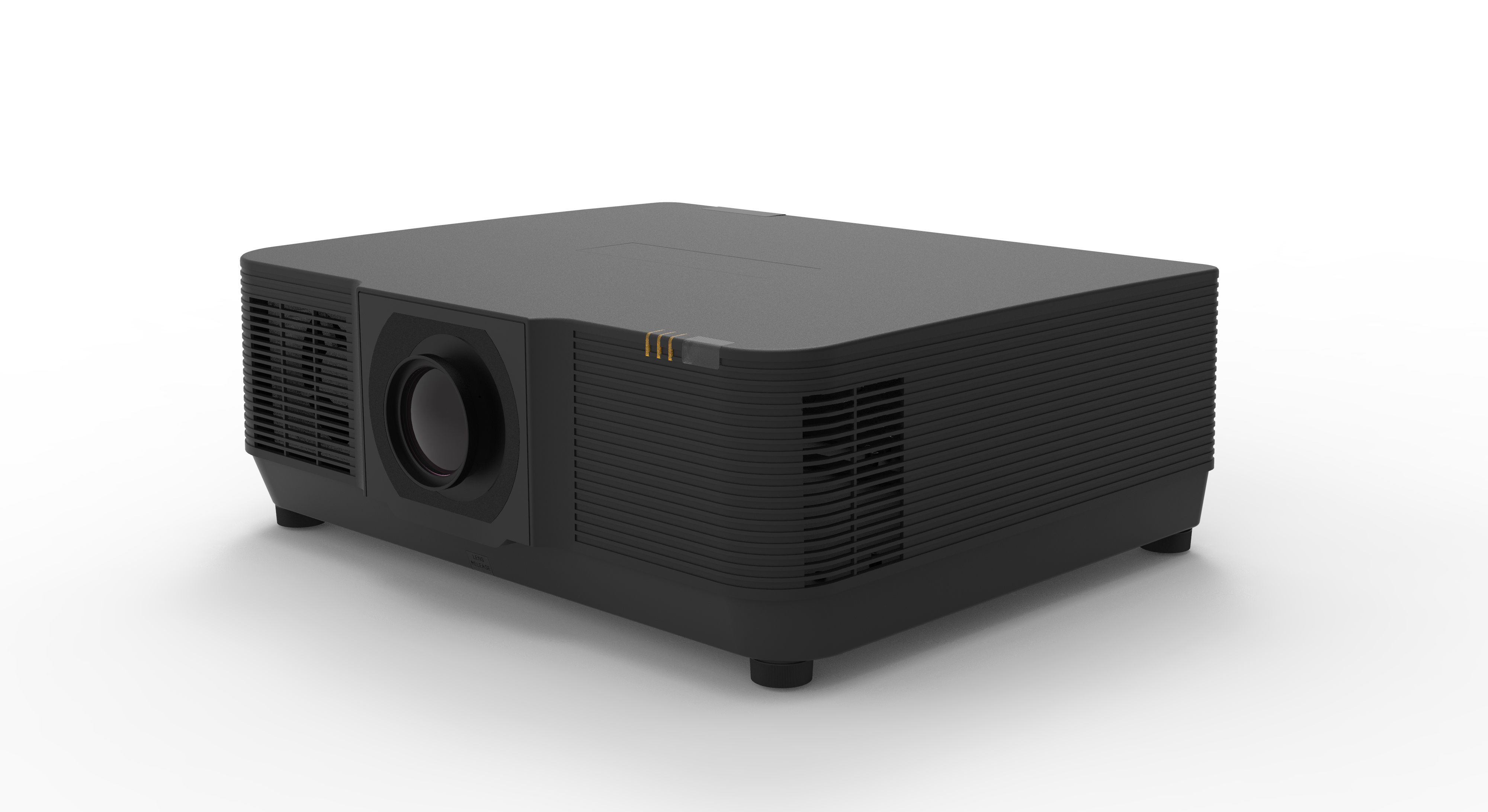

Technology: Laser Projector

Brightness: 10000 Lumens

Resolution: 1920x1200

4K Support: YES

Laser 1laser 5

Model


Model MX-X100U

ID
Key parts


PJ Lens optional

Light source Laser

Mainchip Topaz Prime PWC895

Sony IC CXD3553+CXA3832(1+3)
Brightness


Brightness
    ( Ansi Lumens )
10000lm
Overall Spec

Panel Display Panel 3x0.76”
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Light source
    Life time
Normal mode 20000hrs
ECO mode 20000hrs
Projection
    Lens
Zoom/Focus Powered
Throw Ratio(16:10) 1.30-3.02
F F1.7~2.0
f 21.8-49.8
Zoom   Ratio ‘2.3
Screen size
    (Performance
    guarantee range)
50-500 inch
     (80-200 inch)
Lens Shift V +50%,-10%
Lens Shift H ±20%
CR Contrast Ratio(Min) 100000:1
Noise Noise(dB) Normal(90%): 35dB
    ECO1(75% ): 32dB
    ECO2(45% ): 32dB
Uniformity Uniformity(Actual Min)
    -JISX6911
80%
AR Aspect Ratio Native:16:10
    Compatible: 4:3/16:9/normal
Terminal(I/O port)

Input VGA *1
HDMI 1.4(IN) *2
USB-A *1
    (5V/1.5A)
USB-B *1(Display)
RJ45 *1(Display)
DVI-D *1
HD BaseT *1
HD-SDI(3G-SDI) Optional
Video N/A
Audio in
    (mini jack,3.5mm)
*1 (VGA/DVI-D share)
Output VGA *1
HDMI 1.4(OUT) *1
Audio out
    (mini-jack,3.5mm)
*1
Control RS232 *1
RJ45 *1 (Control)
USB-B *1 (For upgrade)
Wired Remote(IN) *1
Wired Remote(OUT) *1
General Spec

Audio Speaker N/A
Cooling Dust filter free Yes
Power
    Consumption
Power Requeirements 100~240V@ 50/60Hz
Power Consumption
    (Boost) (Max)
850
Power Consumption
    (Normal) (Max)
750
Power Consumption
    (ECO1) (Max)
650
Power Consumption
    (ECO2) (Max)
450
ECO Standby Mode
    Power Consumption
<0.5W
Temp.&Humidity Operating Temp. 5 to 40deg.C
Operating Thumidity. 20-80%
Store Temp. ‘-10 to 50deg.C
Store Humidity. 20-80%
Other   Functions

Keystone Keystone   Correction V: ±30°
    H:±30°
    Pincushion/Barrel Correction
    6 Corner Geometry correction
    Grid ImageTune correction
OSD Languages 26 languages: English, German, French, Italian, Spanish, Polish,   Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese,   Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian,   Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi
LAN Control LAN Control-RoomView
    (Crestron)
Yes
LAN Control-AMX Discovery Yes
LAN Control-PJ Link Yes
Scanning
    Frequency
H-Synch Range 15~100KHz
V-Synch Range 24~85Hz
Display
     Resolution
Computer Signal Input VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW setting Auto Setup INPUT SEARCH,AUTO PC,
Blank Yes
Suspend Yes(5miniutes no   singnal as default)
Picture mode Dynamic,Standard,Cinema,Colorboard,DICOM,blackboard(green)
Cooling time 0s,30s,Normal
Closed caption N/A
High altitude Yes(1400~3650m)
Auto Ceiling Yes
D-Zoom 1~33
Others 360° projection Yes
Edge Blending Yes
Dimension&Weight


MAX   Dimensions
    (WxHxD mm)
600*218*503

Net. Weight (KG) ~24kg

Packaging Box Dimensions
    (WxHxD mm)
725*622*350

Gross. Weight (KG) ~28.5kg
Accessory


Manual   Languages Chinese,English

Standard Accessaries Power cord(3m,Black),
    Remote control&RC Battery

Remote controller
Regulation List

China CCC
WW CB
US cTUVus
FCC
FDA
EU CE-EMC
CE-LVD
CE-ERP
EMC Class


EMC Class Class A@3dBm
