SMD05
SMAX

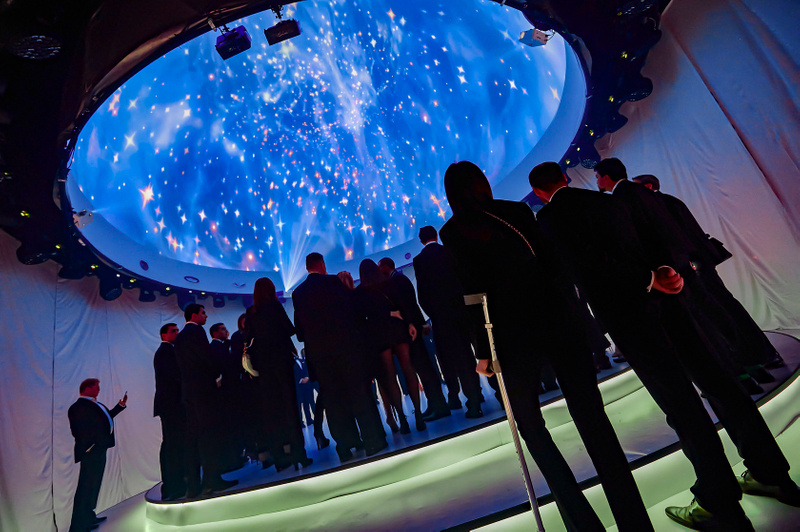

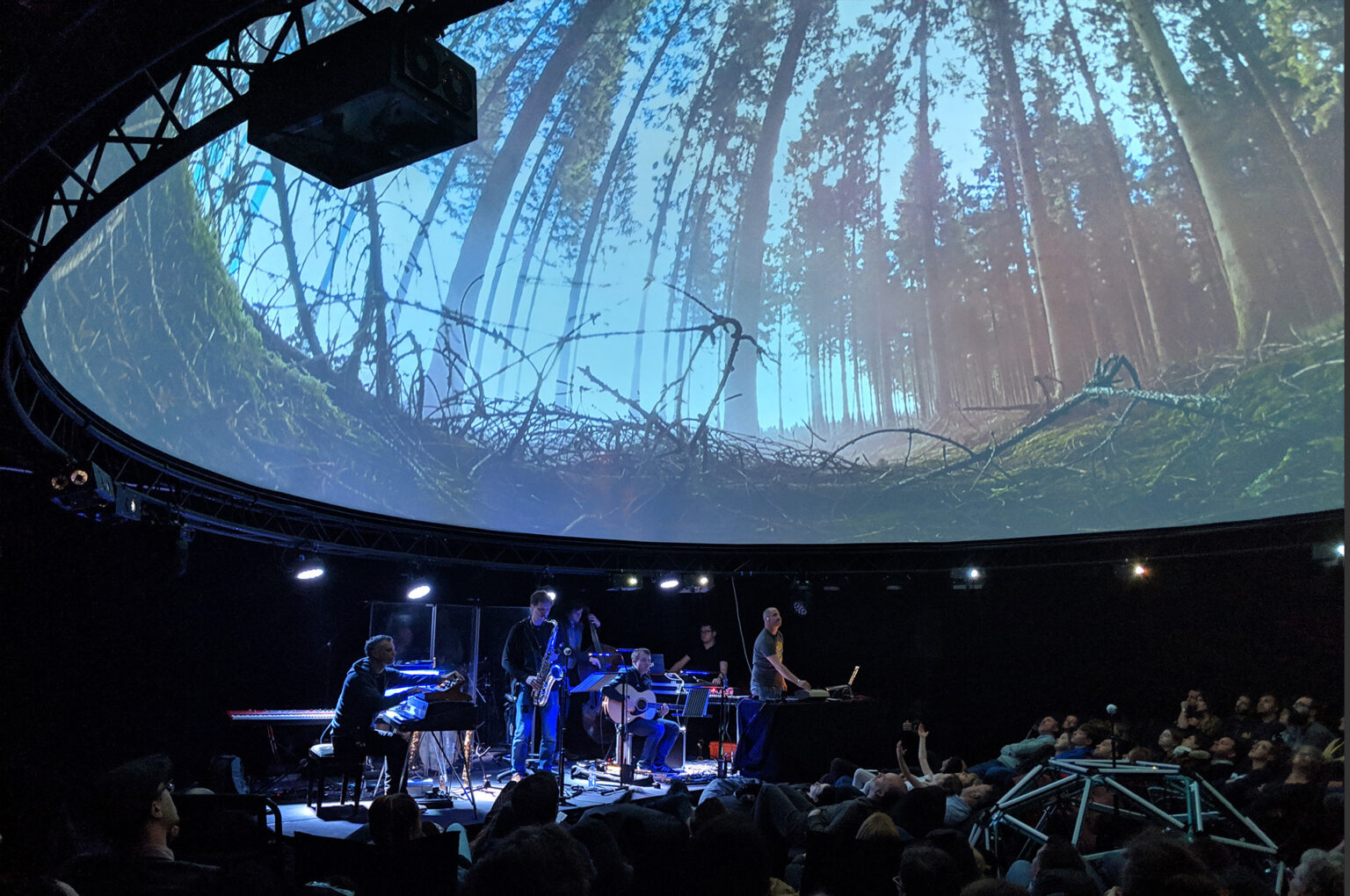

Using stunning 4K video projection, the dome offers compelling 360° sights of the beautiful landscapes that can be found in the region. The dome, which also functions as an event space for corporate and live shows
hemispherical dome displays, fulldome theaters and the recently-introduced panoramic displays. SMAX Screen is available in three (3) different construction types:
The strong structural support of a projection dome is based on its high-quality galvanized steel frame which is perfect for a 360° cinema dome which does not require inside walls or additional columns and supports.

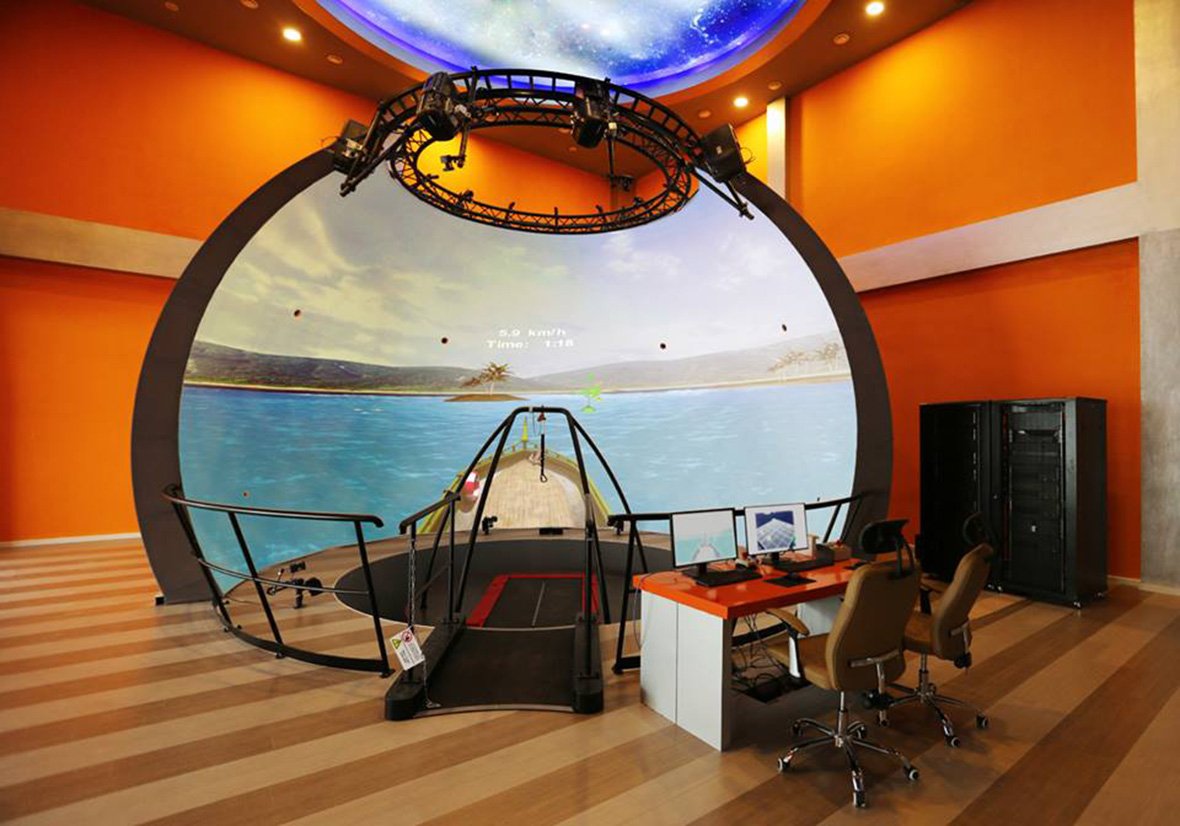

On a custom basis we can provide displays of most any size up to 50-meters in diameter. Alternative configurations also include our horizontally-mounted TopDome (especially appropriate for certain flight-simulation applications), as well as tilted or raked domes.
| Projection Domes | Dimension | Area(Square Meter) | Ridge height(m) | Capacity | Wind load(km/h) |
| Item No. | (m) | ||||
| SMD03 | 3m/10ft | 7.06 | 2 | 7 -10 | 100 |
| SMD05 | 5m/16ft | 19.6 | 2.5 | 20-25 | 100 |
| SMD06 | 6m/20ft | 28.2 | 3.5 | 28-30 | 100 |
| SMD08 | 8m/27ft | 50 | 4.8 | 50-60 | 100 |
| SMD10 | 10m/33ft | 78.5 | 5.8 | 65-100 | 100 |
| SMD15 | 15m/ 50ft | 176.6 | 7.8 | 135-300 | 100 |
| SMD20 | 20m/67ft | 314 | 10 | 250-550 | 100 |
| SMD25 | 25m/84ft | 490.6 | 12 | 500-950 | 100 |
| SMD30 | 30m/100ft | 706.5 | 15.0m | 650-1200 | 100 |
| SMD40 | 40m/134ft | 1256 | 20.0m | 1300-2500 | 100 |
| SMD45 | 45m/ 150ft | 1590 | 22.0m | 1500-3000 | 100 |
| SMD50 | 50m/167ft | 1962.5 | 25.0m | 1800-3500 | 100 |
+ Aluminum frame
+ Fire-retardant blackout polyester outer cover
+ Fire-retardant black out polyester inner projection screen
+ Fan for creating negative pressure
