TT120H
Smax
9010600000
What is the Tension Deluxe Series?
The Tension Deluxe Series is a collection of tensioned, motorized electric projection screens. They are an ideal choice for home theaters or multi-purpose settings requiring high-gain or specialized projection materials.

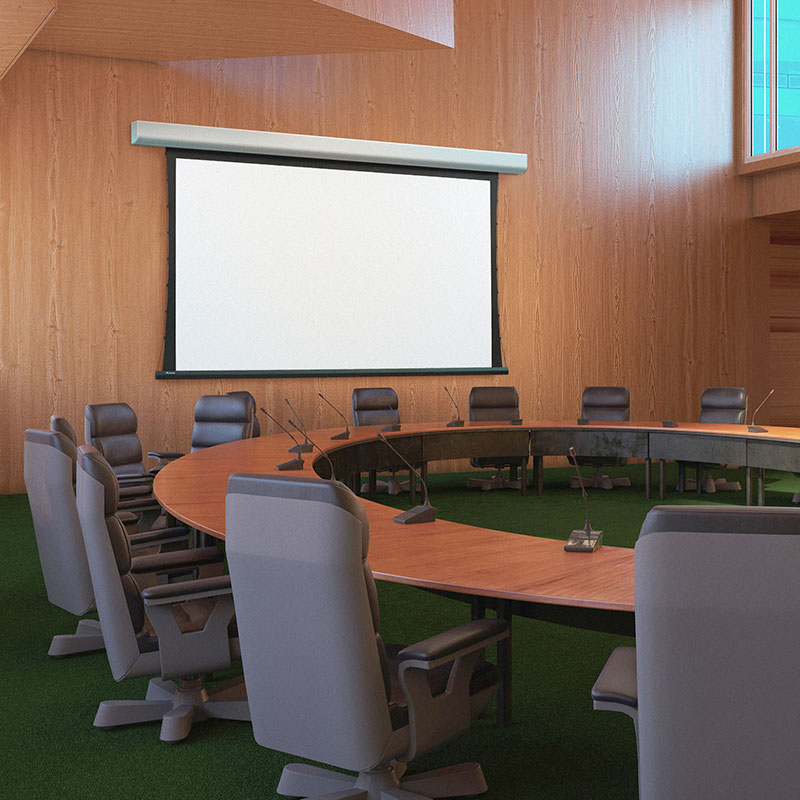

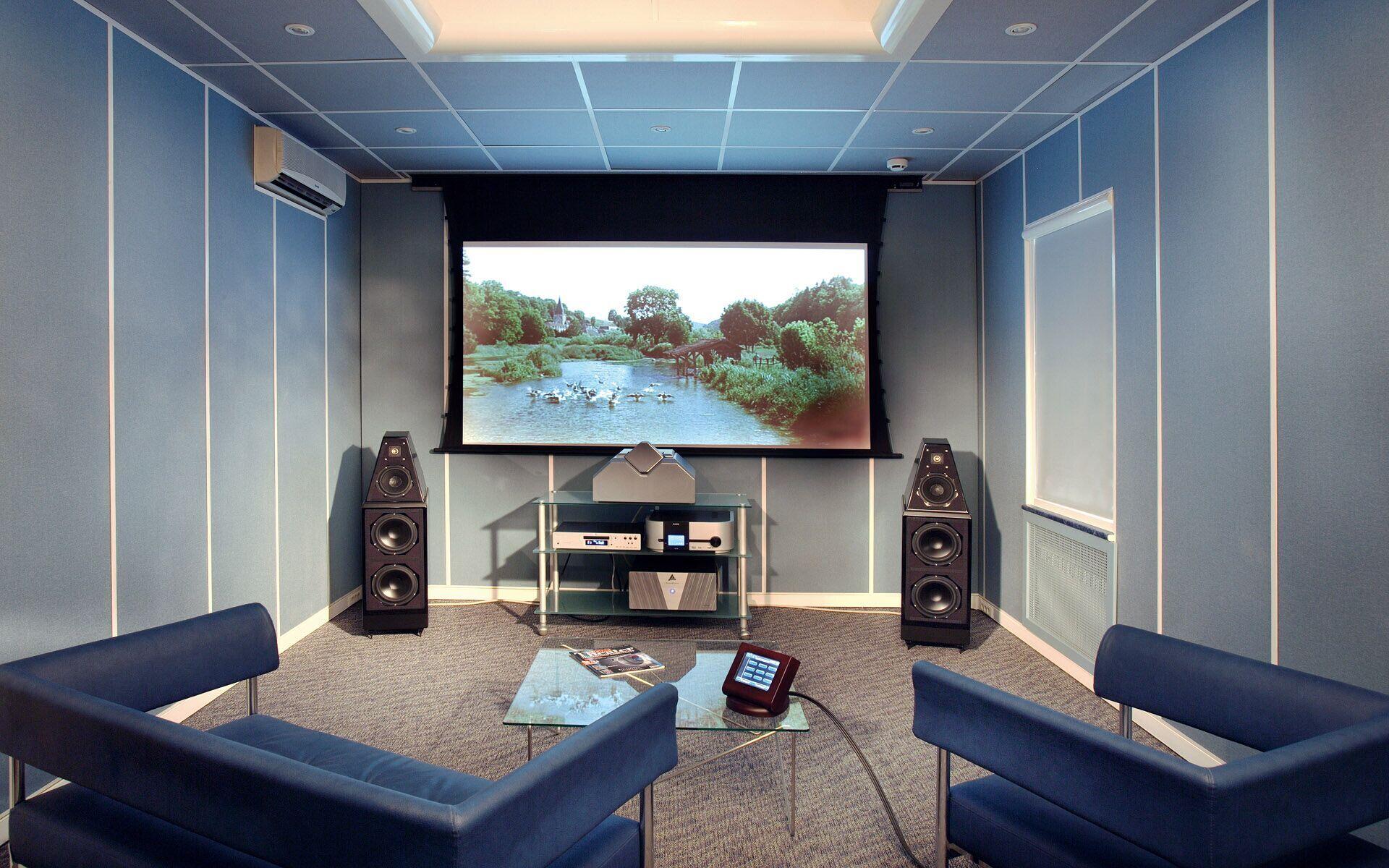

Motorized Tab-Tensioned Screens are perfect for home theater or high level entertainment and business centers. Tensioned screen is one of our bestselling screen specially designed tension feature for prefect viewing angle throughout the entire screening process. Its side tensioned system ensures the perfect flat surface. The screen is widely used in home cinema, hotels, business centers, meeting rooms, entertainment centers etc.
Unique Knob Tensional Adjustment Device
With the Unique Knob Tensional Adjustment Device and the Elastic Auto Tighten System, the “V” shape wrinkle that general screen occurs will be eliminated, the screen fabric will be made as smooth as the mirror surface, the tension adjustment will achieve easily, what’s more the screen flatness could be easily adjusted without any tools.

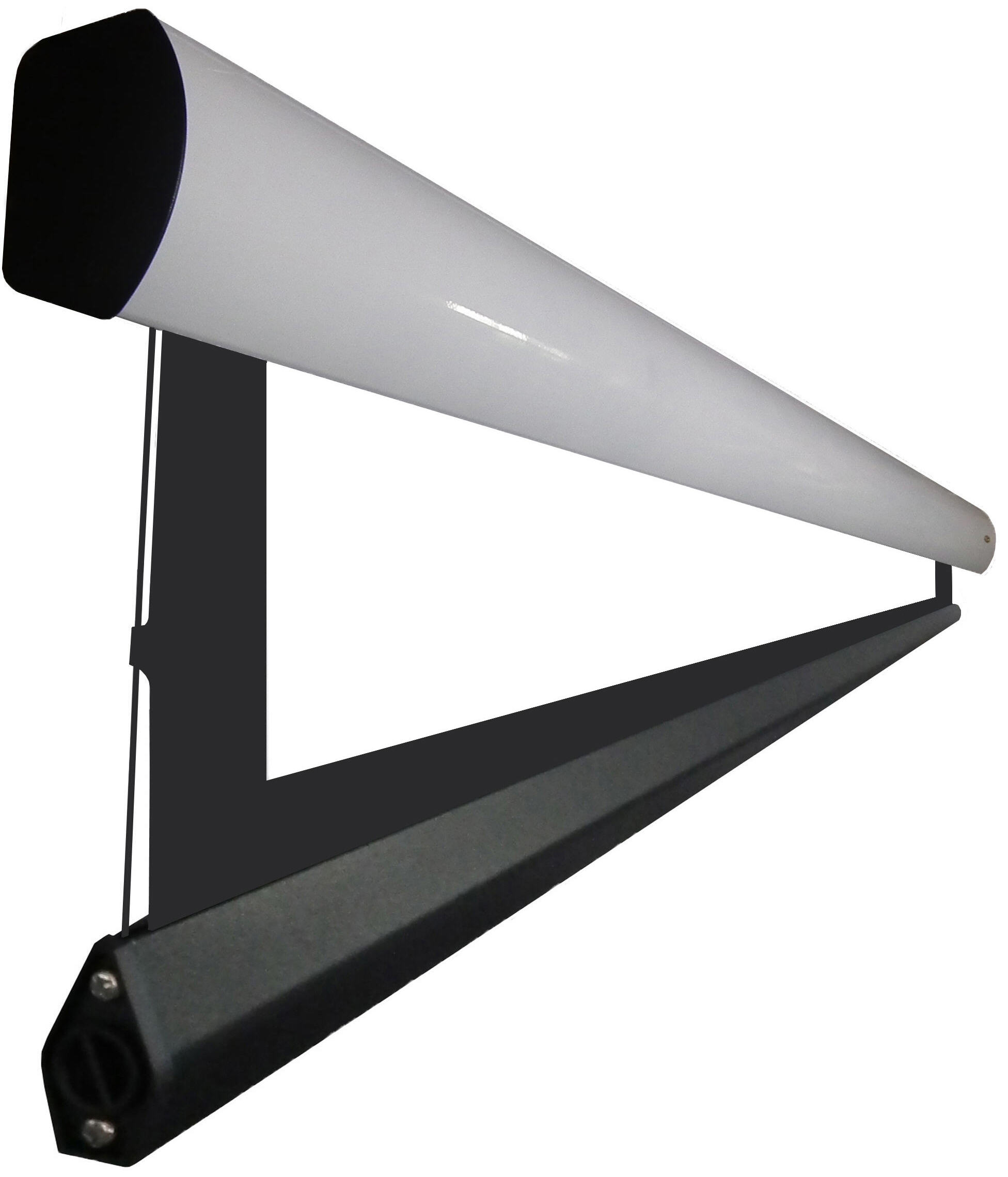

· Sleek, white or black all-aluminum case.
· Tab-tensioned viewing surface.
· Multiple control methods.
· Wall or ceiling mounted.
· Custom sizes from 80”-200”
· HD 1080P ready
Home Cinema、Digital Cinema、Business presentations 、Entertainment venues etc.
| Format | Diagnal | Viewing Area | Drop Black Border | Total Wide | Total Height | G.W | Packing Size | |
| W | H | |||||||
| Inch | Unit: mm | Unit: mm | Unit: mm | Unit: mm | Kgs | Cm | ||
| 16:9 | 80 | 1770 | 1000 | 450 | 2090 | 1670 | 21 | 230x22x16 |
| 92 | 2040 | 1150 | 450 | 2360 | 1820 | 22.00 | 249x22x16 | |
| 100 | 2210 | 1240 | 450 | 2530 | 1910 | 23.00 | 266x22x16 | |
| 106 | 2350 | 1320 | 450 | 2670 | 1990 | 25.00 | 280x22x16 | |
| 120 | 2660 | 1500 | 300 | 2980 | 2020 | 27.00 | 311x22x16 | |
| 133 | 2950 | 1660 | 200 | 3270 | 2080 | 29.00 | 340x22x16 | |
| 150 | 3320 | 1870 | 150 | 3640 | 2240 | 35.00 | 377x22x16 | |
| 180 | 3990 | 2240 | 150 | 4310 | 2610 | 40.00 | 444x22x16 | |
| 200 | 4430 | 2490 | 150 | 4750 | 2860 | 48.00 | 488x22x16 | |
| 2.35:1 | 100 | 2340 | 1000 | 450 | 2660 | 1670 | 25.00 | 279x22x16 |
| 106 | 2480 | 1060 | 450 | 2800 | 1730 | 26.00 | 293x22x16 | |
| 120 | 2810 | 1200 | 450 | 3130 | 1870 | 28.00 | 326x22x16 | |
| 133 | 3110 | 1320 | 450 | 3430 | 1990 | 32.00 | 356x22x16 | |
| 150 | 3510 | 1490 | 450 | 3830 | 2160 | 38.00 | 396x22x16 | |
| 180 | 4210 | 1790 | 450 | 4530 | 2460 | 46.00 | 466x22x16 | |
