180 Degree Economy Simulation Projection Screen Curved Screen in 4m Diameter, Front Projection

We make curved screens, screens for active and passive 3D simulator screens and simulation displays. Curved Frame Screen is a customized product that is made-to-order for each customer. For the curved screen, a unique material is applied to the frame that is specially manufactured to ensure that the screen has no creases and high smoothness. Any degree and shape of the screens are available for single or multi-projector displays. All curved screens are available in a design format, custom sizes, FOV, and Radii
Availability:
Quantity:
Inquire Add to Basket

  • 180CS

  • SMAX

  • 90106000


History: SMAX produce all kinds of Projection Screens in China since 2004

Quality: 15 years OEM&ODM Experiences, SMAX can ensure the stable quality

Production: 50,000 units Screens monthly, SMAX can ensure the soonest delivery time

Advantage: Economy competitive price,accept customize large screens.



SMAX curved projection screens integrate nicely into flight simulation, car racing games, immersion games,VR games, military simulation, marine simulation, museums and many more.


SMAX’s curved screen is a customized product that is made-to-order for each customer. Every screen comes with different sizes, radius to meet your specifications.

120, 180, 220,270 , 300, 360 degree, and any other custom degree and shape are available for single or multi-projector displays.


All SMAX’s curved screens are available in a design format that allows assembly on site. It can be with or without floor stands if required. It can be with projector bracket if required.

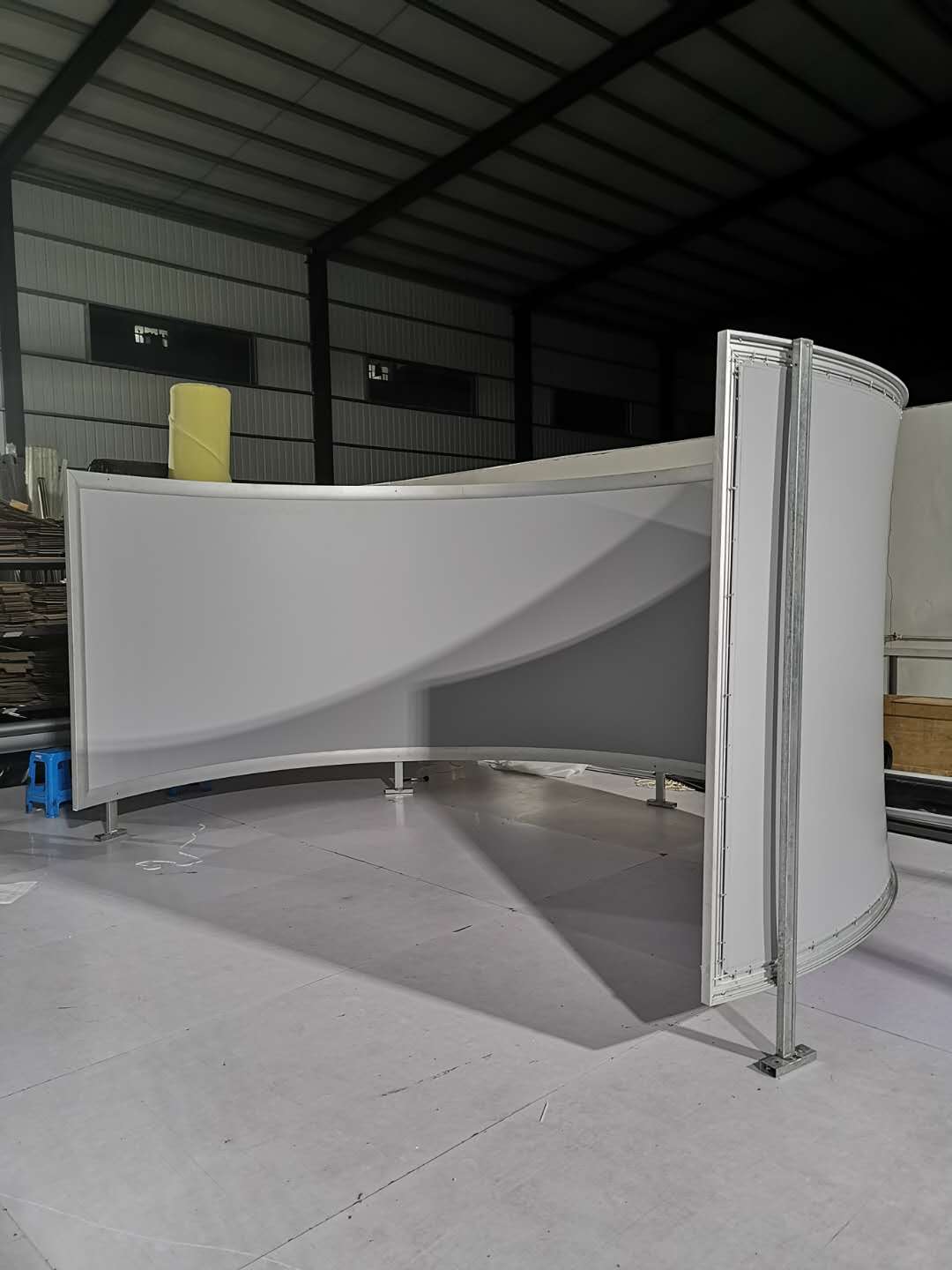

IMG_20211120_175256



STRONG IMMERSON

Compared to flat screens, curved projection screens add a more intense level of immersion. They are currently being used for flight simulation, driving simulation, military simulation, museums, trade shows, etc.


GOOD QUALITY

SMAX’s curved screen has NO wrinkles on the surface. Please be careful when choosing curved screens since many tend to have wrinkles on the surface. These wrinkles result in uneven images and low quality.


EXPORTING TO MANY COUNTRIES AROUND THE WORLD

SMAX is exporting its products to countries around the world after proving the quality of its products and technologies. Experience the best quality from SMAX for yourself.




CUSTOM-MADE

SIMULATION CURVED PROJECTION SCREEN

Spring-tensioned  / On-site Assembly

Excellent for museums or exhibitions

Excellent for training simulators: Flight, driving, military, Helicopter gaming simulation, instructor & pilot training systems etc…

120, 180, 270, 360, and any other custom degree curved projection screen

For visualization applications

For single, multiple channel projection displays

Gives a sense of immersion

QQ截图20210916163028

barco7-2040.0.0


APPLICATIONS

» Cinema

» Museums, Theme Parks, Galleries

» Gaming, Entertainment

» Control Room

» Training Simulators (Flight Simulators, Driving Simulators, Military Simulators…)

» Government Projects

» Education

screen 2




Several types of SMAX’s Curved Projection Screen Material

DescriptionHD Flexible WhiteHD Flexible Gray3D   Silver(Flexible)3D Silver(Hard)Rear   Gray(Flexible )
Brightness(Gain)10.92.5-2.80.8-4.03
View Angle16016512070-110120
DimensionHeightUp   to 4.5m HUp   to 3.2m HUp   to 3.6m HUp   to 2.5m HUp   to 4.8m H
WidthNo Limit(Depending on # of   projectors)
Material(Color)WhiteGraySilverSilverDark Gray
SeamlessYesYesYesYesYes
Frame Width8CM,10CM,15CM
3D CapabilityNoNoYesYesNo
ApplicationsCinema,   Video PresentationCinemaCinema,   SimulationCinema,   SimulationRear   Projection
RemarksFloor Stand is optional


Technology: Laser Projector

Brightness: 10000 Lumens

Resolution: 1920x1200

4K Support: YES

Laser 1laser 5

Model


Model MX-X100U

ID
Key parts


PJ Lens optional

Light source Laser

Mainchip Topaz Prime PWC895

Sony IC CXD3553+CXA3832(1+3)
Brightness


Brightness
    ( Ansi Lumens )		 10000lm
Overall Spec

Panel Display Panel 3x0.76”
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Light source
    Life time		 Normal mode 20000hrs
ECO mode 20000hrs
Projection
    Lens		 Zoom/Focus Powered
Throw Ratio（16：10） 1.30-3.02
F F1.7~2.0
f 21.8-49.8
Zoom   Ratio ‘2.3
Screen size
    (Performance
    guarantee range)		 50-500 inch
     (80-200 inch)
Lens Shift V +50%，-10%
Lens Shift H ±20%
CR Contrast Ratio(Min) 100000:1
Noise Noise(dB) Normal(90%): 35dB
    ECO1(75% ): 32dB
    ECO2(45% ): 32dB
Uniformity Uniformity(Actual Min)
    -JISX6911		 80%
AR Aspect Ratio Native:16:10
    Compatible: 4:3/16:9/normal
Terminal(I/O port)

Input VGA *1
HDMI 1.4(IN) *2
USB-A *1
    （5V/1.5A)
USB-B *1（Display）
RJ45 *1（Display）
DVI-D *1
HD BaseT *1
HD-SDI(3G-SDI) Optional
Video N/A
Audio in
    （mini jack,3.5mm）		 *1 (VGA/DVI-D share)
Output VGA *1
HDMI 1.4(OUT) *1
Audio out
    （mini-jack,3.5mm）		 *1
Control RS232 *1
RJ45 *1 (Control)
USB-B *1 (For upgrade)
Wired Remote(IN) *1
Wired Remote(OUT) *1
General Spec

Audio Speaker N/A
Cooling Dust filter free Yes
Power
    Consumption		 Power Requeirements 100~240V@ 50/60Hz
Power Consumption
    （Boost) (Max)		 850
Power Consumption
    （Normal) (Max)		 750
Power Consumption
    （ECO1) (Max)		 650
Power Consumption
    （ECO2) (Max)		 450
ECO Standby Mode
    Power Consumption		 <0.5W
Temp.&Humidity Operating Temp. 5 to 40deg.C
Operating Thumidity. 20-80%
Store Temp. ‘-10 to 50deg.C
Store Humidity. 20-80%
Other   Functions

Keystone Keystone   Correction V: ±30°
    H：±30°
    Pincushion/Barrel Correction
    6 Corner Geometry correction
    Grid ImageTune correction
OSD Languages 26 languages: English, German, French, Italian, Spanish, Polish,   Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese,   Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian,   Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi
LAN Control LAN Control-RoomView
    (Crestron)		 Yes
LAN Control-AMX Discovery Yes
LAN Control-PJ Link Yes
Scanning
    Frequency		 H-Synch Range 15~100KHz
V-Synch Range 24~85Hz
Display
     Resolution		 Computer Signal Input VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW setting Auto Setup INPUT SEARCH,AUTO PC,
Blank Yes
Suspend Yes(5miniutes no   singnal as default)
Picture mode Dynamic，Standard，Cinema，Colorboard，DICOM,blackboard（green）
Cooling time 0s,30s,Normal
Closed caption N/A
High altitude Yes(1400~3650m)
Auto Ceiling Yes
D-Zoom 1~33
Others 360° projection Yes
Edge Blending Yes
Dimension&Weight


MAX   Dimensions
    (WxHxD mm)		 600*218*503

Net. Weight (KG) ~24kg

Packaging Box Dimensions
    (WxHxD mm)		 725*622*350

Gross. Weight (KG) ~28.5kg
Accessory


Manual   Languages Chinese,English

Standard Accessaries Power cord(3m,Black),
    Remote control&RC Battery

Remote controller
Regulation List

China CCC √
WW CB √
US cTUVus √
FCC √
FDA √
EU CE-EMC √
CE-LVD √
CE-ERP √
EMC Class


EMC Class Class A@3dBm
